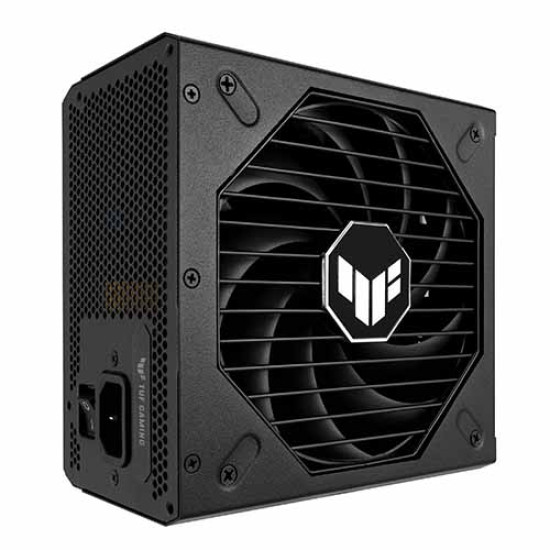

Asus TUF Gaming 850W Gold Power Supply (TUF-GAMING-850G)

Key Features

• Capacitors and chokes pass demanding tests to achieve Military-grade Certification.
• Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
• A protective PCB coating protects against moisture, dust, and extreme temperatures.
• An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components.

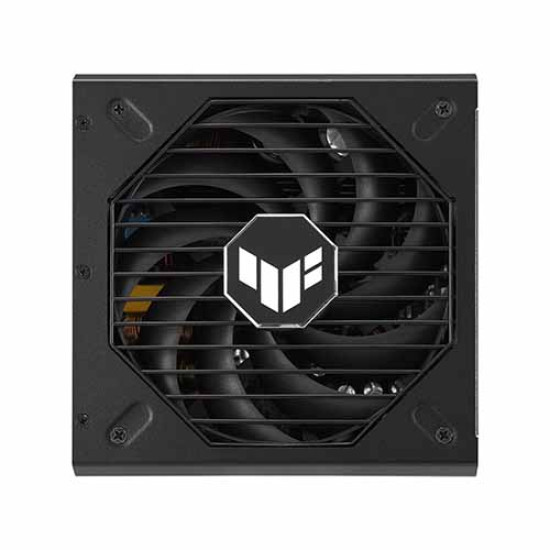

• Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
• Fully modular etched cables keep your rig neat and tidy.

Built For The Long Haul

The ASUS TUF Gaming 850W Gold packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that will reliably fuel your rig for years to come.

MTBF

The ASUS TUF Gaming 850W Gold, enhanced with military-grade components, passes a stricter MTBF (mean time between failures) test to deliver up to twice the lifespan of standard power supplies, empowering you build with confidence.

High-Performance Copper Pins

• Upgraded PCIe® connectors featuring superior thermal conductivity ensure cooler operation and improved power delivery efficiency.
• This translates to a significant 29% reduction in connector temperatures (up to 12.28°C), promoting optimal performance and stability for even the most demanding graphics cards.

Etched Cables

Made from a pliable premium material, these etched cables are easily flexible during installation, and they operate at temperatures 50°C lower than the safety limit when routed for cable management. These cables also meet the rigorous standards of the UL1581 flame test and UL758 certification, helping to ensure a smooth PC DIY experience and exceptional safety.

Specification

Model : TUF Gaming 850W Gold

Intel Form Factor : ATX12V

PFC Type : Active PFC

ATX Standard : ATX 3.1

Dimensions : 150 x 150 x 86 mm

Efficiency : 80Plus Gold

MTBF : >120,000 hrs @ 40°C

Protection Features : OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials : ROHS

AC Input Range : 100-240Vac

DC Output Voltage : +3.3V +5V +12V -12V +5Vsb

Maximum Load : 25A25A70.8A 0.8A 3A

Combined Load : 130W 130W 850W 9.6W 15W

Total Output : 850W

0dB Technology : Supported. The fan shuts off entirely when the PSU is under certain load

0dB Fan Button : No. The product operates in 0dB mode by default. The fan will only spin up when the system reaches a certain load.

Cable Connectors

MB 24/20-pin x 1

CPU 4+4-pin x 2

PCI-E 16-pin x 1 (both PSU & component side)

PCI-E 8-pin x 3

SATA x 5

PERIPHERAL x 4

Package Contents

Power Cord x 1

Motherboard Power Cable x 1 (610mm)

CPU Cable x 2 (650mm)

PCI-E Gen 5.1 16-pin Cable x 1 (675mm)

PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)

PCI-E 1-to-1 Cable x 1 (675mm)

SATA 1-to-2 Cable x 1 (400+120mm)

SATA 1-to-3 Cable x 1 (400+120+120mm)

Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)

TUF Gaming Cable Tie x 3

User Manual x 1
